- 10 channel, programmable and telemetry enabled
- Voice synthesis feature that lets you hear telemetry updates as you see them
- Features a specialized programming menu for multi-rotor aircraft
- Convenient programming port on the back for S.Bus/S.Bus2 servos

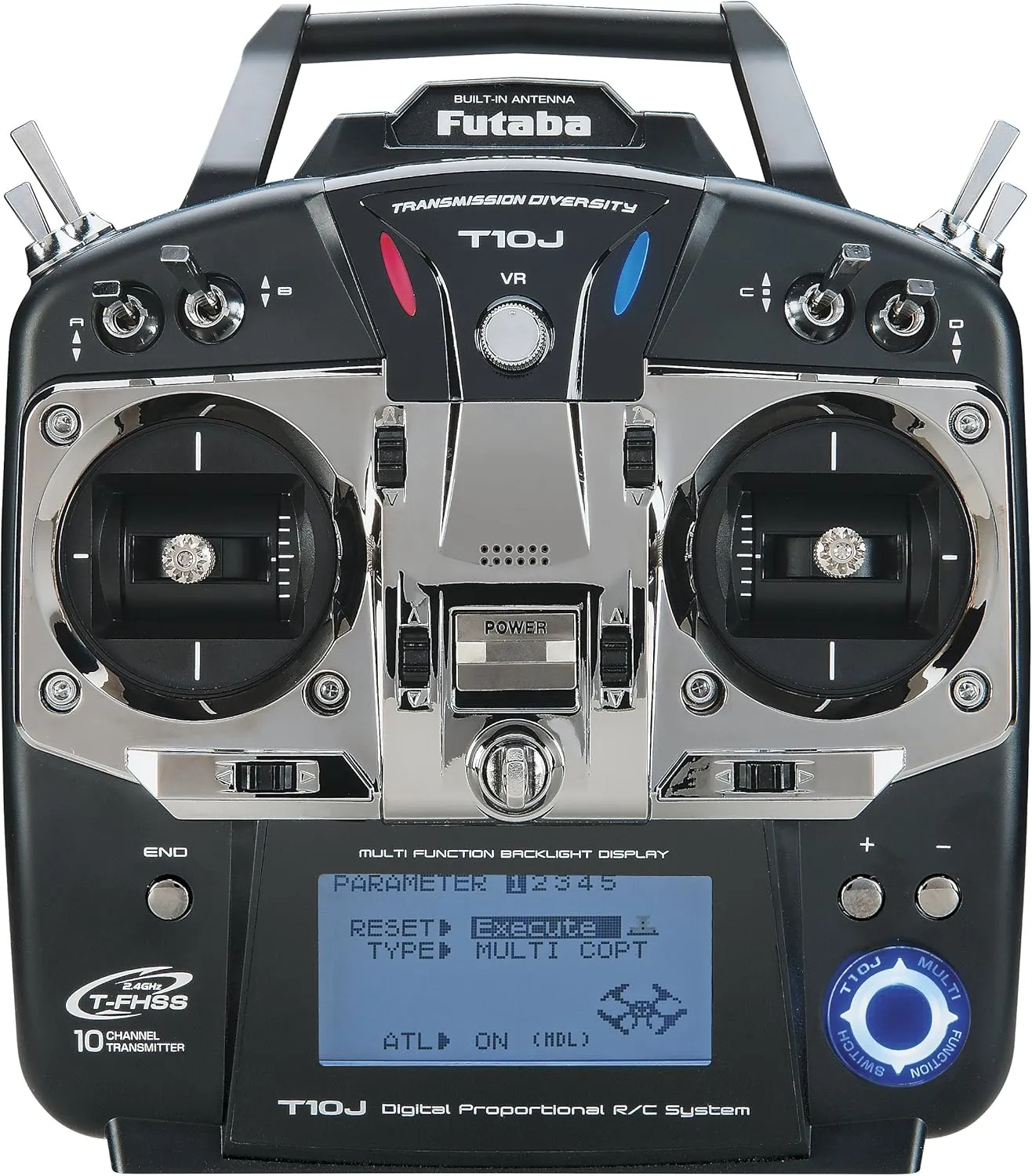

- Includes Futaba 10JA transmitter, R3008SB receiver, switch harness, neck strap, and instruction manual
Here are a few of 10J's best features: 10 channels, telemetry capable, fully programmable and user updateable. Telemetry data can be both viewed on the backlit LCD screen and audibly reported through headphones so you can keep your eyes on the sky. Plus, it's light weight, easy to handle and equipped with 30 model memory. Updating is simple, so your transmitter will never be out of date.
The Futaba 10JA is perfect for a whole host of applications: airplane, helicopter, glider and multi-rotor menus are all included.
System Features:
- Futaba T-FHSS, S-FHSS 2.4 GHz security
- Airplane, heli, glider & multi-copter software
- 30-model internal memory
- S.Bus capable T-FHSS receiver
- Telemetry
- Synthesized voice for telemetry data
- Vibration alerts for alarm conditions and low battery
- User-updatable software (requires optional CIU-2 interface)
- Wireless data transfer among 10J transmitters
- Built-in S.Bus programming link for S.Bus servos
- 10-character model and user naming
- Large LCD display (128 x 64 dot) backlit LCD display
- 10 channels (one variable knob, (5) 2-position switches, (2) 3-position switches, (1) momentary switch & (2) digital levers
- Built-in diversity antenna
- Jog dial and 3 buttons for fast, easy programming
- Sub-trim and fail-safe (all channels)
- Servo reversing, endpoint adjustment digital trims, dual rates/exponential (assignable to any switch) & ATL
- Trim step adjustment
- Trainer system
- Throttle cut
- 2 count-up/-down timers integrated timer
- Model Timer
- Range check mode
- Servo cycle w/bar graph displays
- Assignable switch/lever/functions (Ch. 5-10)
Airplane Menu:
- 6 programmable mixes, plus:
- 9 factory-defined mixes
- Flaperons with differential rate
- Flap trim
- Differential ailerons
- Gyro sensitivity
- 5-point throttle & pitch curves
- Throttle delay
- Idle down
Glider Menu
- 6 programmable mixes, plus:
- 3 factory-defined mixes
- 5 wing types
- Gyro sensitivity
- Motor menu
- 2 flight conditions
Heli Menu
- 6 programmable mixes, plus:
- 10 factory-defined mixes
- 8 swash plate types
- 5 flight conditions w/delay
- Throttle curve (4 curves, 5 points)
- Pitch curve (5 curves, 5 points)
- Throttle hold & delay
- Swash AFR
- Electronic swash ring
- 6 programmable mixes, plus:
- Gyro sensitivity/mixing
- Center stick alarm
Requires 4 "AA" Alkaline batteries and servos.
